Series B - Standard Flow - 10.3 BAR (CWP) Flanged

Home » Equilibrium Float Valves » Bronze Equilibrium Float valves » Series B - Standard Flow - 10.3 BAR (CWP) Flanged

View our Equilibrium Valves Flow Chart here.

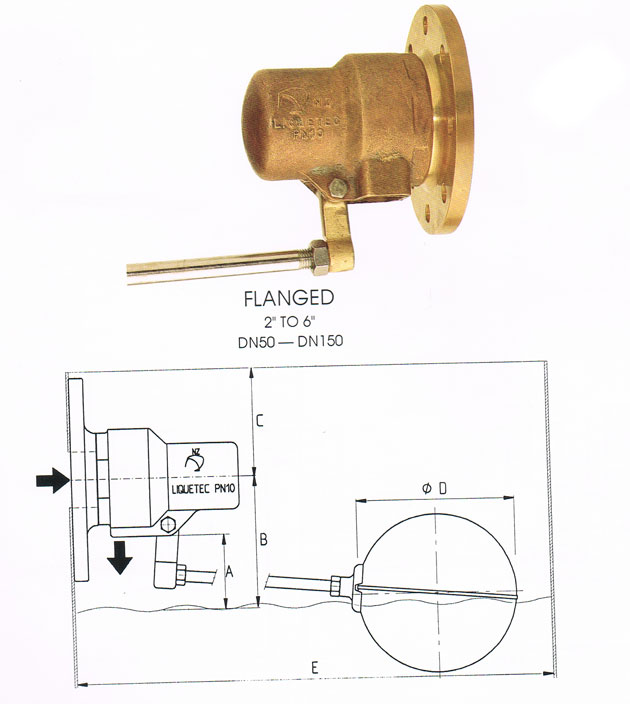

equilibrium valve
SERIES B STANDARD FLOW 10.3 BAR (CWP) FLANGED
Size - mm A B C D E Weight - kg Flow @ 80psi/550kPa
LIT/SEC   -   IMP GAL/HR		 ORDER CODE
DN50 56 100 95 200 848 5.5 12.3     -     9741 EBFL - 050
DN65 76 130 105 250 935 7.2 21.1     -     16709 EBFL - 065
DN80 76 130 115 300 1048 9.7 23.7     -     18762 EBFL - 080
DN100 95 170 125 300 1052 12.6 29.2     -     23058 EBFL - 100
DN2150 95 170 160 350 1226 18.5 60.2     -     47656 EBFL - 150
- - - - - - - -     -     - -
- - - - - - - -     -     - -
- - - - - - - -     -     - -
- - - - - - - -     -     - -
