Series C- Low Flow - 10.3 BAR (CWP) Female/Flanged

Home » Equilibrium Float Valves » Bronze Equilibrium Float valves » Series C- Low Flow - 10.3 BAR (CWP) Female/Flanged

View our Equilibrium Valves Flow Chart here.

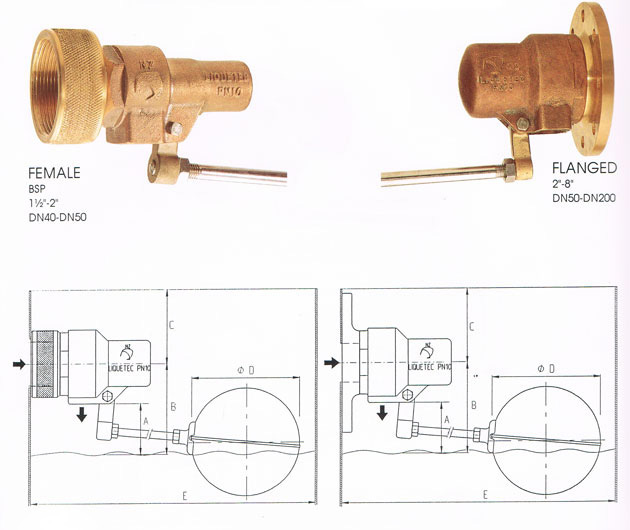

equilibrium valve
SERIES C LOW FLOW 10.3 BAR (CWP) FEMALE/FLANGED
Size - mm A B C D E Weight - kg Flow @ 80psi/550kPa
LIT/SEC   -   IMP GAL/HR		 ORDER CODE
DN40 50 85 45 150 715 1.80 5.2     -     4122 ECTF - 040
DN50 50 85 45 150 720 1.85 5.3     -     4150 ECTF - 050
DN50 50 85 95 150 720 4.70 5.3     -     4150 ECFL - 050
DN65 56 100 105 200 850 7.00 12.3     -     9741 ECFL - 065
DN80 66 120 115 250 935 8.60 21.1     -     16709 ECFL - 080
DN100 66 120 125 300 1052 11.60 23.7     -     18762 ECFL - 100
DN150 85 160 160 300 1060 17.80 29.2     -     23058 ECFL - 150
DN200 85 160 190 350 1230 25.00 60.2     -     47656 ECFL - 200
- - - - - - - -     -     - -
